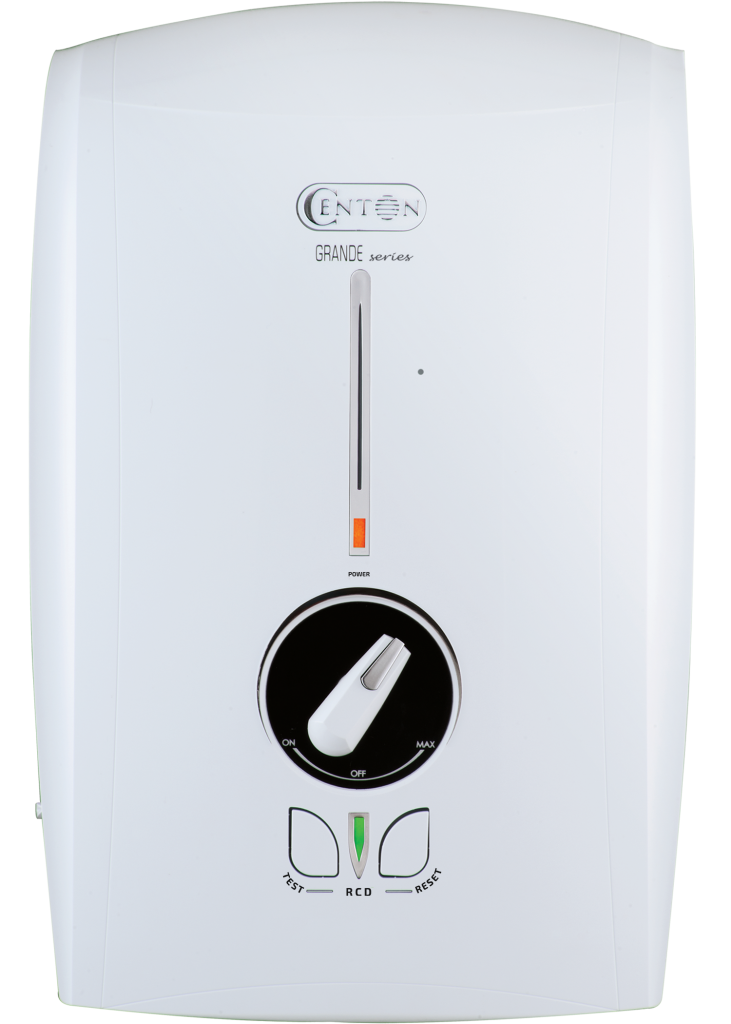

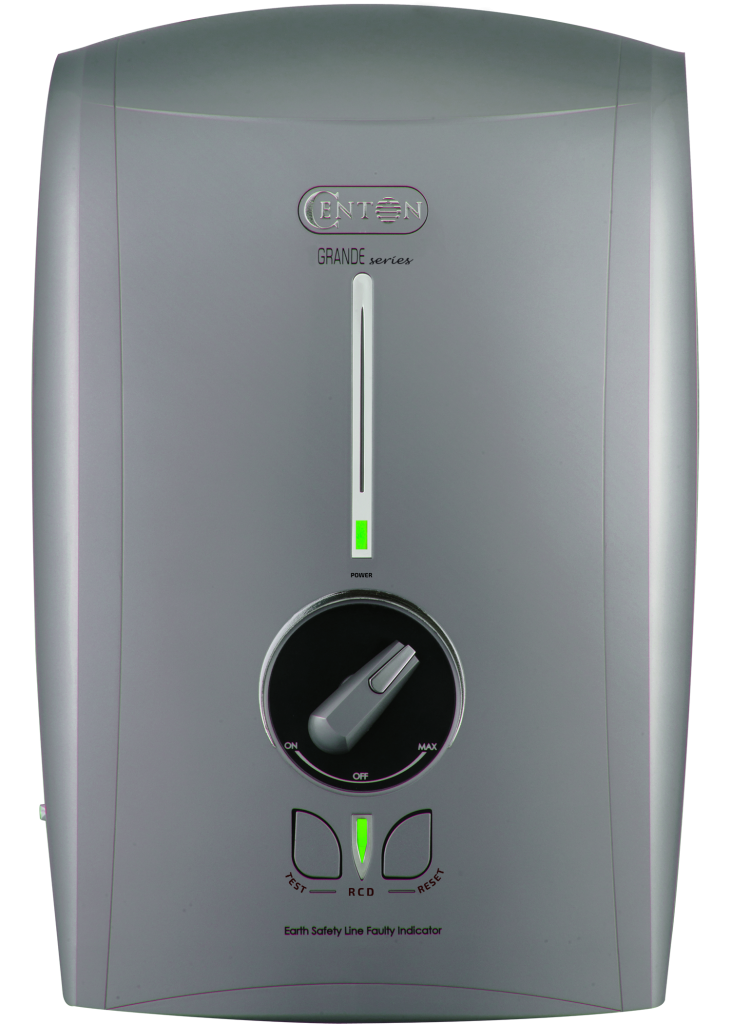

GRANDE SERIES
COLOR
PUMP
- NO PUMP
- A.C. BOOSTER PUMP
- D.C. SILENT PUMP
SHOWER SET
- HAND SET
- RAIN SHOWER SET
Category: A.C. Booster Pump, D.C. Silent Pump, Hand Shower Set, No Pump, Rain Shower Set
The exclusive instant water with powerful silent pump and rain shower to deliver to you unlimited hot shower water flow for a luxurious shower experience.
Shower Hand Set selection allows users to select preferred shower spray pattern for optimum shower sensation.
Boosting shower water flow as much as 4.5 times for bathrooms that do not have enough water pressure.
Allows users to make fine power adjustment to produce desired shower temperature.
Protection against water jet spray from all possible directions.
Life-saving device which cuts off power supply in the event of current leakage, protecting users from getting electric shock.
Protects internal electrical circuit from electrical surges and voltage spikes, including those caused by lightning.
Cuts off power supply in the event where water flow is less than the rated flow that might result in internal overheating.
Additional manual reset function in the event of abnormal temperature rise, protecting users from the risk of scalding.
Advanced heating technology providing users with instant hot shower water flow, with a guaranteed 5-year warranty.
Tankless instantaneous water heater technology provides on-demand constant supply of hot water instantly without the need of waiting.
Switch on both the water supply and water heater in just a tap, with the flow rate preset to your previous usage. No knob turning needed.
SHOWER WATER PUMP | BOOST YOUR BATH
Enhance your daily shower experience by equipping your GRANDE SERIES with the powerful CENTON Shower Water Pump:
A.C. Booster Pump
Cost efficient. Boosting water flow up to 4.5 times, this powerful build-in booster pump comes with speed control feature that allows you to control the volume of unlimited hot shower water flow.
D.C. Silent Pump
D.C. Silent Pump | Silent yet powerful. This built-in silent pump comes with the advanced 3-phase brushless DC motor that generate high flow rate and consumes 50% lower electrical power than normal AC motor.
SHOWER HAND SET | BE IN CONTROL
GRANDE SERIES comes with a 5-Spray Hand Set, to deliver to you adjustable spray heights, directions, modes and functions.
OR
Optionally, choose to upgrade to the Rain Shower Set for a more luxurious shower experience!
TECHNICAL SPECIFICATION
| Heater Electrical Rating | 3kW-8kW,220V-240Vac,50/60Hz |
| Minimum Water Flow Rate | 2 litre / min |
| Maximum Water Pressure | Plastic Tank :0.38MPa(3.8bar/55psi) Copper Tank :0.60MPa(6bar/87psi) |
| Water Temperature Contro | Electronic Control |
| Water Connection | 15mm dia. (1/2″ BSP) |
| Dimensions | 283mm x 630mm x 100mm (H) |
| Weight(Gross) | No Pump : 3.1kgs AC Pump : 4.1kgs DC Pump : 3.6kgs |
| AC Pump Electrical Rating (Motor) | 120W, 220V – 240Vac |
| DC Pump Electrical Rating (Motor) | 50W, 24Vdc |
